GTX28R Bottom Mount Turbo Kit

Product Description

Excellent choice for any Toyota Starlet/Glanza 4E/5E engine build that requires a fast spooling 400-475bhp!

Available with turbo selections below:

GTX2860 / GTX2867 Gen2 Turbo

Turbine Housing Options:

Tial 0.52/0.63 or Garrett 0.57 VBAND housing

Power Capability:

400-475bhp (flywheel) with any turbo/hot side combo above

Engine fitment:

Toyota 4E/5E

Other fitment particulars:

AC compatible

Requires the use of a half radiator

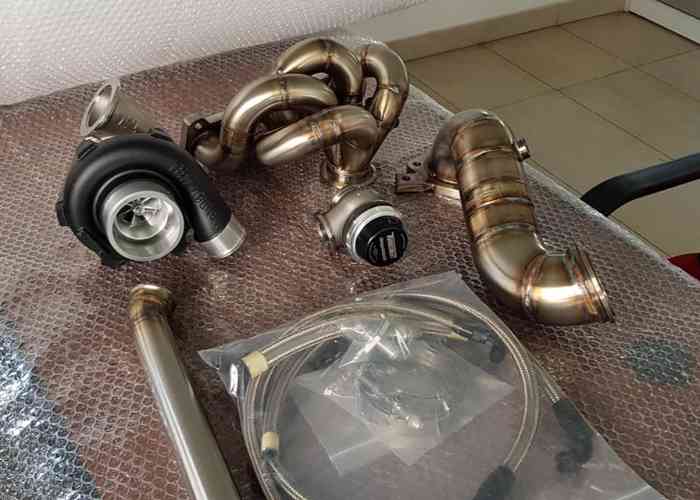

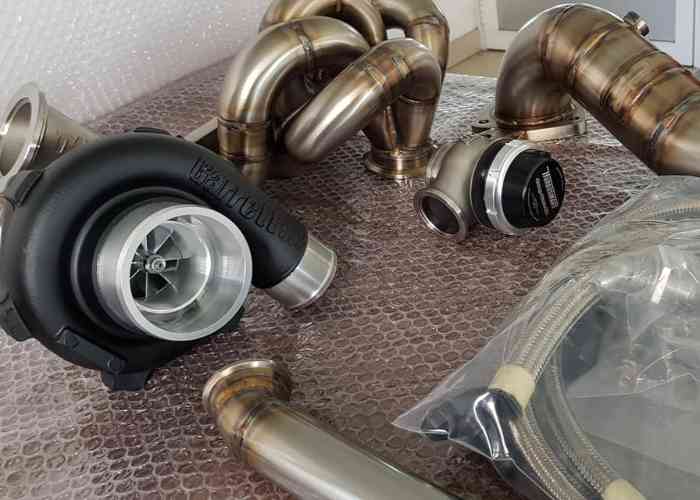

Turbo kit includes:

Garrett GTX28 gen2 VBAND turbo

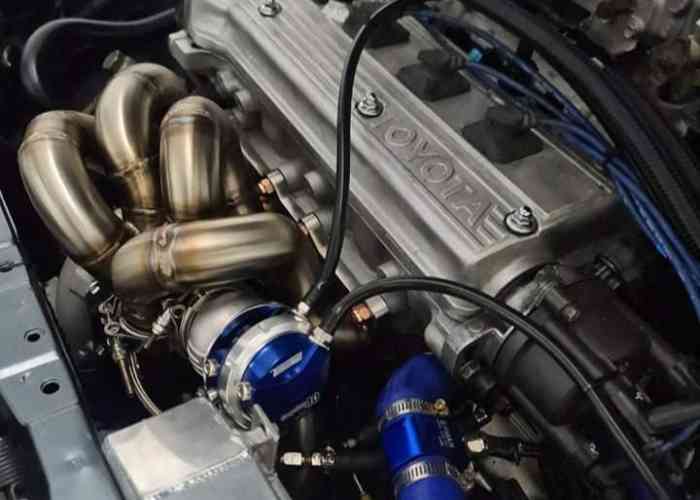

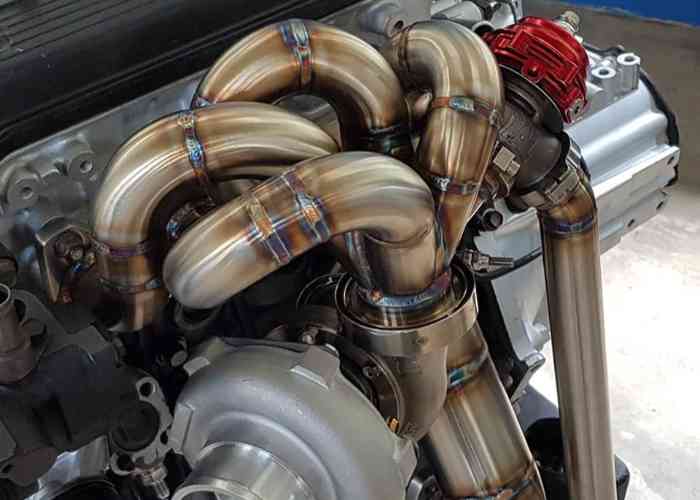

VBAND bottom mount Godzilla manifold

3″ inch VBAND downpipe

Tial 38mm MVS VBAND waste gate

Complete -AN braided oil-water lines

Turbo inlet-outlet VBAND clamps.

Fabrication:

316L SCHD10 back purged

All stainless steel flanges.

Warranty:

2 year warranty on manifold, downpipe, waste gate dump pipe.

Garrett/Tial products carry their own respective individual warranties offer by these companies.

All oil-water lines, -AN adapters supplied with the kit do not carry any warranty.

Warranty period starts from date of delivery to the customer.

Optional Extras (Email/DM us on social media for more info on cost for these add-on’s):

Garrett core Type-R rear entry front mount intercooler kit (Not AC friendly)

Garrett core Type-S regular front mount intercooler kit (AC friendly)

Waste gate dump pipe plumb-back +$75

Reversible waste gate dump option +$150 (Allows you to plumb-back / run open waste gate dump on the same kit)

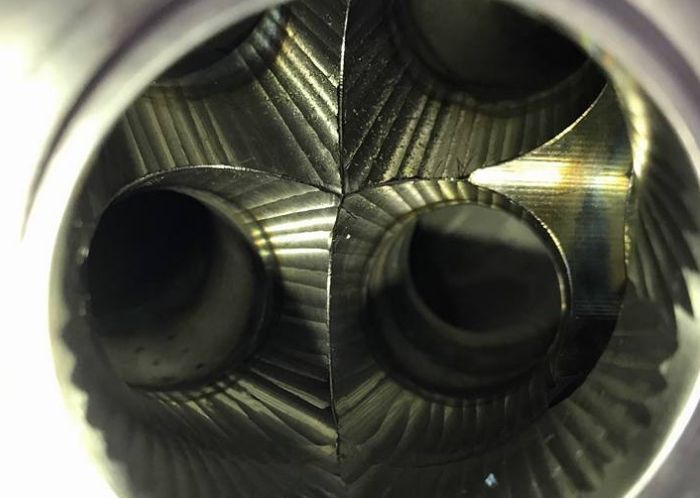

Billet CNC collector option +$450

This turbo kit is also available with G25/G30/G35 & GTX30/35R VBAND Turbos at added cost to suit most any power requirement. Email us (wickedep@yahoo.com) or DM us on social media for more info on pricing and availability.

Your current exhaust will require modification to fit the 3″ VBAND downpipe supplied with this kit.

Shipping insurance is available at extra cost upon request. WickedEP Racing will not accept any responsibility for Damage or Loss if package is not insured. Insured packages must be shipped with full invoice value declared.
